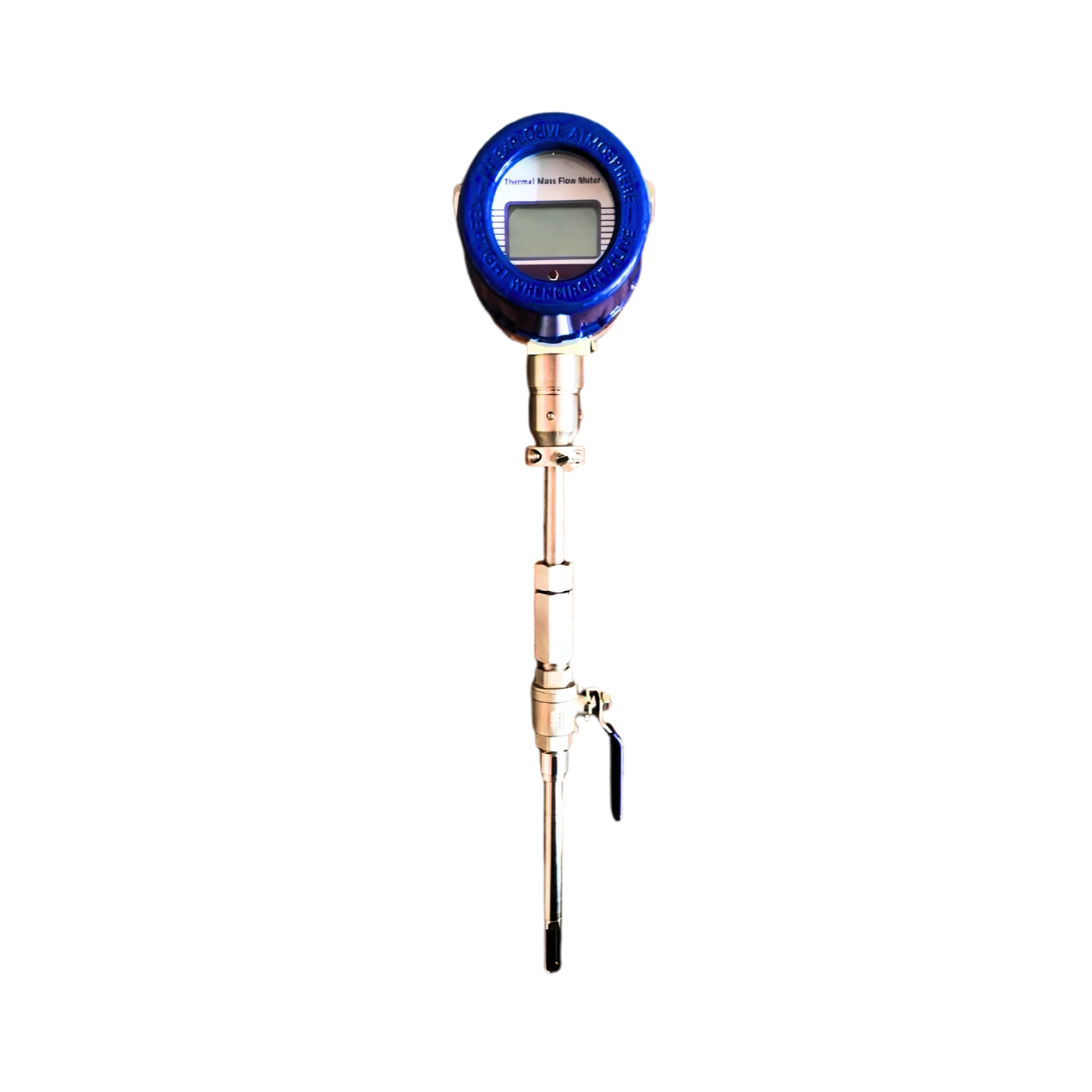

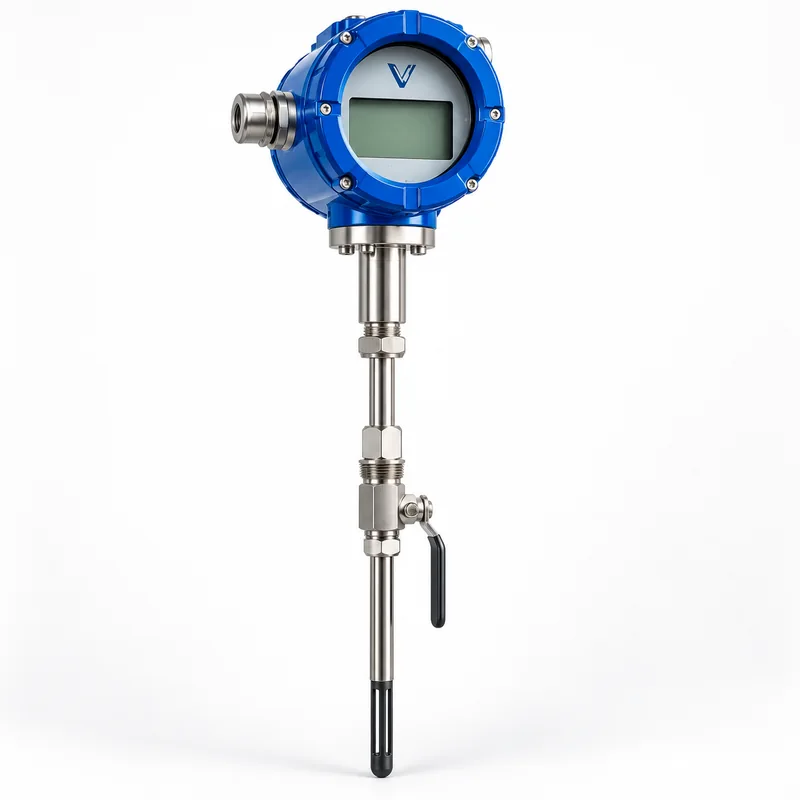

Insertion Thermal Mass Flowmeter
The thermal mass flowmeter is based on thermal dispersion and uses the constant differential temperature method to measure gas flow. It offers benefits such as compact size, easy installation, high reliability, and high accuracy.
Industrial B2B sales · Application-focused selection
Send your media, line size, expected flow range and operating conditions to help us identify a suitable meter.
Product Details & Technical Information
The specifications and product description below come from the individual WooCommerce product record.
The thermal mass flow meter is based on thermal dispersion and uses the constant differential temperature method to measure gas flow. It offers benefits such as compact size, easy installation, high reliability, and high accuracy.
Features:
- Measuring the mass flow or volume flow of gas.
- The design provides precise measurements and straightforward operation without the need for temperature and pressure compensation.
- Digital design, high accuracy and stability.
- No vibration influence on the measurement accuracy.
- Configuring with RS485 or HART interface to realize factory automation and integration.
- Simple installation and maintenance. Under suitable site conditions, the meter allows for hot-tapped installation and maintenance. (Custom-made special order required).
- Wide measurement range from 0.5 Nm/s to 100 Nm/s for gases. Suitable for gas leak detection with excellent vibration resistance and extended service life. The transducer features no moving parts or pressure sensors.
- Recording consumption data on a daily, monthly, or yearly basis.
