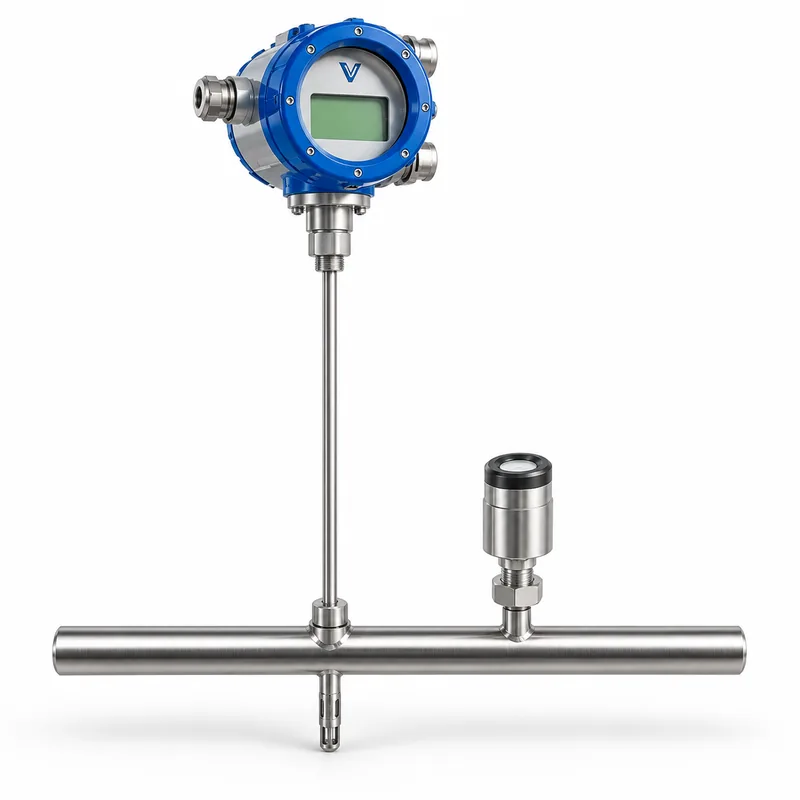

Insertion Thermal Mass Flowmeter Installation Under Pressure
The Insertion Thermal Mass Flowmeter Installation Under Pressure precisely measures gas flow, consumption, and temperature in hazardous environments. With a wide measuring range and a high turndown ratio, it’s ideal for volatile flow, low-flow bypass, and monitoring gas consumption. Built with durable materials and integrated temperature measurement, it ensures reliable performance and long-term stability in industries such as oil and gas, environmental monitoring, chemical, and food processing.
Industrial B2B sales · Application-focused selection
Send your media, line size, expected flow range and operating conditions to help us identify a suitable meter.
Product Details & Technical Information
The specifications and product description below come from the individual WooCommerce product record.
Insertion Thermal Mass Flowmeter Installation Under Pressure is designed to accurately measure standard flow, mass flow, gas consumption, and temperature, even in hazardous environments. With a wide measuring range from 0.1 Nm/s to 63617 Nm³/h and a turndown ratio of 1:2500, it is well-suited for highly volatile flows, low-flow bypass, and gas consumption monitoring of single equipment.
Features:
-
Designed for gases such as compressed air, nitrogen, oxygen, carbon dioxide, and other non-condensing gases
-
Supports pipe diameters from DN20 to DN1000
-
High turndown ratio of 1:2500 with a measuring range from 0.1 Nm/s to 250 Nm/s
-
Full digital signal processing ensures long-term accuracy and stability
-
Based on the thermal dispersion principle – no need for pressure or temperature compensation
-
Integrated gas temperature measurement
-
Fully isolated electronics reduce interference from field environments
-
Multi-language LCD interface available (English, Spanish, French, and more)
-
Each unit is factory-calibrated with a unique serial number and traceable calibration data
